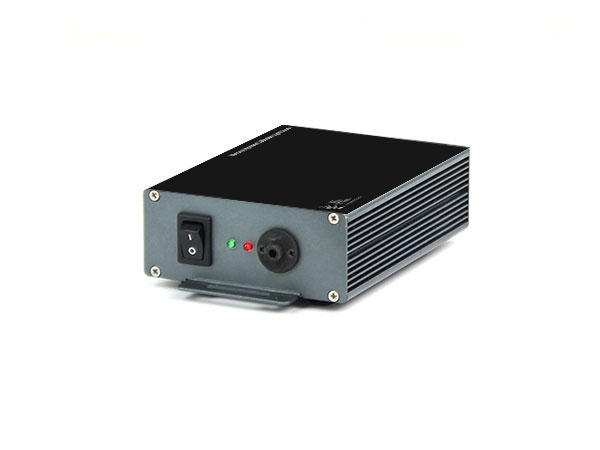

Mercury Argon Lamp

GIE-LIGHT-MA

GIE-LIGHT-MA is a standard light source suitable for wavelength calibration of spectrometers in the 200-1100nm spectrum range. The standard spectrum wavelength is attached for comparison.
The light source is equipped with an SMA905 optical fiber connector for easy connection to the spectrometer.

Product advantages：

High accuracy, no correction required
The light source has a rich line spectrum and can meet the calibration of spectral instruments from 200-1100nm.
SMA905 optical fiber connector (other connectors can be customized)

Specification

Model	GIE-LIGHT-MA
Dimension	91mm×37mm×120mm
Working Wavelength	253nm-912nm
Fiber Connector	SMA905
Power	12VDC，2A
Bulb Type	Mercury Lamp
Mercury Lamp Life	2000 hours(typical value)

List of spectral peak

253.652	576.960*	794.818
296.728	579.066*	800.616*
302.15	696.543	811.531
313.155	706.722	826.452
334.148	714.704	842.465
365.015	727.294	852.144
404.656	738.398	866.794
407.783*	750.387	912.297
435.833	763.511	922.45
546.074	772.376

Standard peak requires a high-resolution spectrometer to analyze

Spectrum

Using a 200-1000nm spectrometer, the resolution is about ~1.5nm
